System Assembly & Disassembly

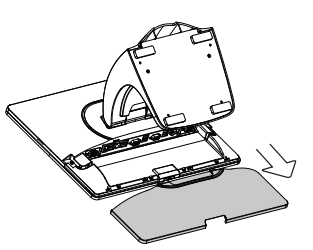

Remove the Cable Cover
- Place the system face down, make
sure not to scratch the touch screen
- Pull the cable cover upwards to
release it from the system
Remove the Stand Back Cover
- Pull the bottom part of the stand back
cover upwards to release it from the
system

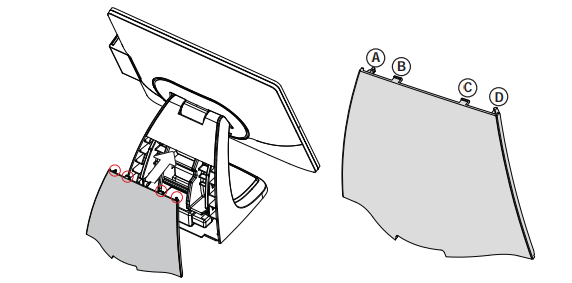

Install the Stand Back Cover
- Align and attach the cover on the four grooves on system side.
- When attaching the cover, please take care that the cover is installed in the
correct order(A to D) and then press it into place
