Install the Customer Display
Remove Top Stand Back Cover- The top part of the stand back cover is secured with screws(x2). Loosen the screws to remove the cover

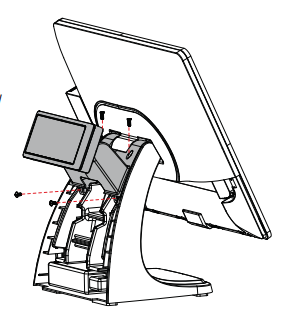

- Attach the LCM module to system by fastening the screws (x4)
- Remove the cable cover.
- Route the LCM cable through the hole of the stand as picture shown and then connect the cable to USB port on the system IO panel. Make sure the system is powered off
